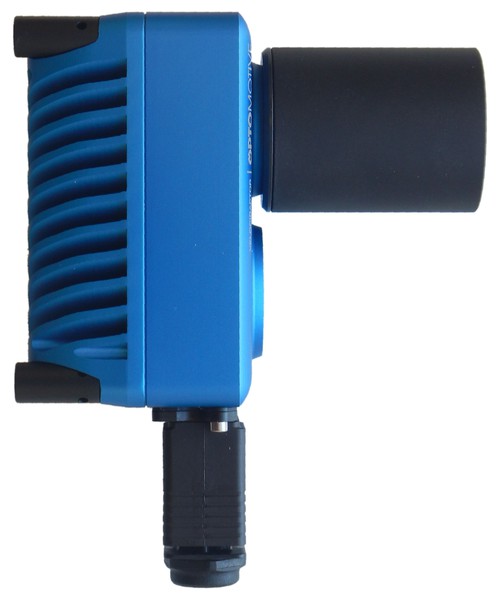

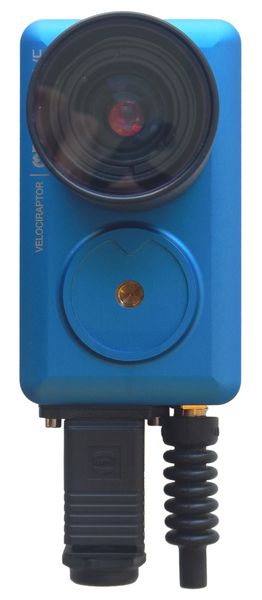

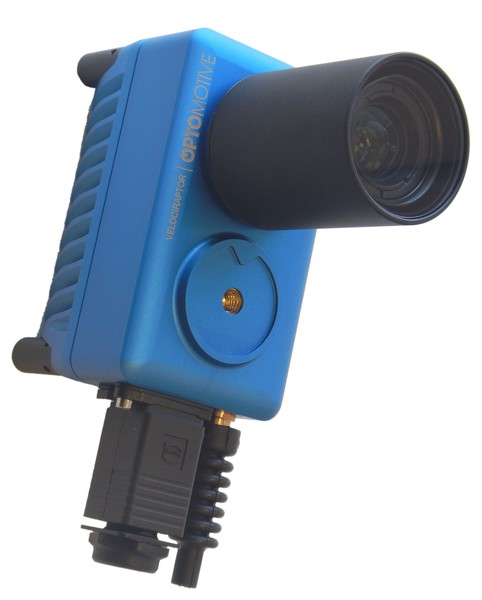

Velociraptor EVO
Velociraptor is fast running and fast grabbing.
Velociraptor is the ultimate FPGA camera with a very large Xilinx Spartan-6 FPGA and high speed imaging sensor. It is based on new GigaBee modules, which incorporate dual DDR3 memory and Gigabit Ethernet. It is ultimate-performance system-on-chip (SOC) technology, combined with latest turbocharged industrial CMOSIS imaging sensors.
Semi-Custom FPGA camera accelerates time-to-market for special applications
FPGA reference design with source code available - Velociraptor HSDK
From: 0 €
Sensor:
• CMOSIS CMV2000, 2/3” CMOS colour, monochrome or NIR sensor, 2048 × 1088 pixels, 5.5 μm pixel size, 340 FPS at JPEG video acquisition,
• CMOSIS CMV4000, 1” CMOS colour, monochrome or NIR sensor, 2048 × 2048 pixels, 5.5 μm pixel size, 180 FPS at JPEG video acquisition.
Connectivity, I/O:
• Gigabit Ethernet (isolated Power over Ethernet),
• 4 pin trigger connector (3x bidirectional IOs).
FPGA:
• 15 Mgates Spartan-6LX with 2x128 MB DDR3 SDRAM,
• Ultimate FPGA System-on-Chip,
• User programmable
• Capable of intensive real-time image processing.
Dimensions:
• 54 × 94 × 66 mm (housing),
• 46 × 84 × 34 mm (OEM with C-mount).
Usage: compatible with Optomotive VEVO API dynamically linked library with examples(C, C# examples included) and with 3rd party applications (MATLAB(R), LabView(R), etc.).
• Semi-custom High-Speed FPGA camera
• Rapid development and integration of custom FPGA image processing algorithms,
• 3 general purpose user-programmable digital I/O pins, 20 acessible FPGA pins in OEM.
• Targeted to metrology and industrial use.
• C or CS housing (IP67 option)
• 3D image processing laser line triangulation core
• RLE image compression core
• Multiple simultaneous pipelines
- Motion capture
- 3D scanners
